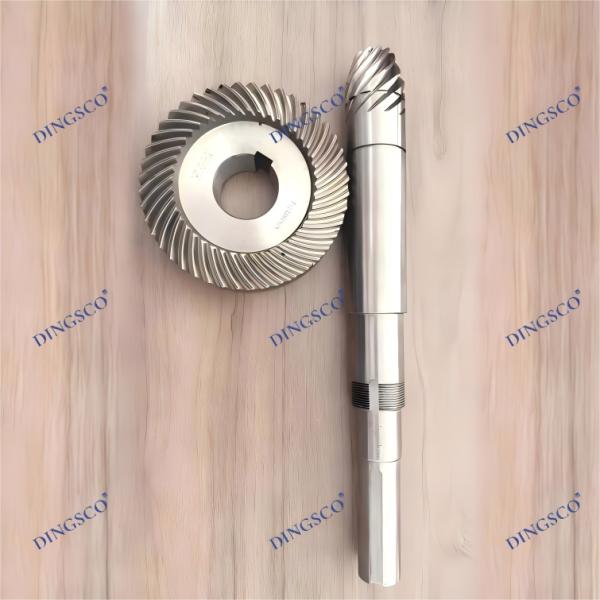

Orthogonal Grinding Gear with ISO 4-6 Grade Accuracy and HRC 58-62 Hardness for 90° Intersecting Shaft Applications

Orthogonal Grinding Gear with Extra-Long Integrated Shaft | Custom Fabrication

The orthogonal gringding gear with an extra-long integrated shaft is a specialized transmission component designed for industrial reducers and precision machinery. By combining orthogonal gear design with integrated shaft construction, this product ensures stable torque transmission, enhanced alignment accuracy, and superior durability, making it ideal for high-demand applications.

Key Technical Features

1. Orthogonal Gear Design

• 90° intersecting shaft arrangement for compact and efficient power transfer.

• Ensures smooth torque output with reduced vibration.

• Suitable for complex reducer structures where space is limited.

2. Gear Grinding Precision

• Manufactured with gear grinding technology to achieve high tooth surface accuracy.

• Reduces noise and backlash, ensuring stable performance even under continuous load.

• Tooth profile and surface roughness are optimized for longer operational life.

3. Extra-Long Integrated Shaft

• One-piece shaft structure eliminates connection joints, improving rigidity and strength.

• Reduces assembly errors and misalignment risks.

• Provides better load distribution across bearings and gear teeth.

4. Material & Heat Treatment

• High-quality alloy steel (e.g., 20CrMnTi, SCM415) with carburizing and quenching process.

• Surface hardness up to 58–62 HRC, ensuring excellent wear resistance.

• Core toughness maintained for impact resistance and long fatigue life.

OUR FACTORY

ISO 4-6 Grade Accuracy Grinding Gear

HRC 58-62 Hardness Orthogonal Gear

90° Intersecting Shaft Spiral Bevel Gear

Orthogonal Grinding Gear with ISO 4-6 Grade Accuracy and HRC 58-62 Hardness for 90° Intersecting Shaft Applications Images
